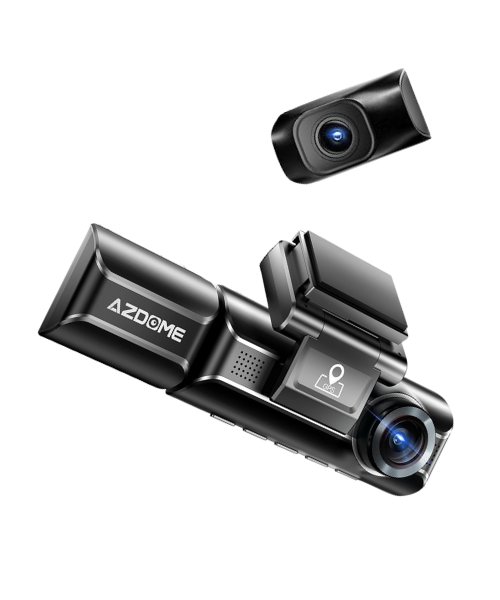

Azdome M550 Max Dashcam (3CH - Front/Cabin/Rear)
The Azdome M550 Max is a tri-channel dashcam with 4K front, 1080p cabin and 2K rear recording, providing complete three channel coverage.
Quantity
Key Features
-
4K UHD front + 1080p cabin + 2.5K QHD rear, making it perfect for anyone who wants all round recording like rideshare/uber drivers
-
Dual STARVIS sensors and WDR allow for clear day and night recording
-
STARVIS sensors and 6 IR sensors in cabin camera allow for clear cabin recording in low-light conditions
-
24/7 Parking Monitoring with motion and impact detection as well as time-lapse recording option (requires hardwire kit)
-
Waterproof rear camera allows for installation either inside or outside of the vehicle
-
3.18" screen and button controls allow for increased accessibility while driving
-
Storage & Memory — Includes 64GB microSD card; supports up to 256GB for extended recording.
What’s Included
- 4K Front Camera
- 1080p Cabin Camera
- 2K Waterproof Rear Camera
- Rear Camera Connection Cable 6m
- Type-C USB Power Cable 3.5m
- 64GB MicroSD Card
- Car Charger
- Cable Clip x5
- Adhesive Bracket
- Pry Tool
- Electrostatic sticker x2
- User Manual
*If you wish to hardwire the dashcam, a hardwiring kit must be purchased separately.
Tech Specs
General Info
| Number of Channels |
3CH : Front, Cabin and Rear Recording |
| Mounting Options |
Adhesive Bracket for Mounting *Optional Adhesive bracket for interior mounting of rear camera to rear windscreen
|
| Interface/Controls | Button-Controlled + App-controlled |
| Operating Temperature | -20°C ~ 70°C |
| Dimensions |
Front: 29.97*138.94*33.02mm |
| Power | Supercapacitor |
| Warranty |
1 Year Warranty |
Camera Quality
| Camera Resolution |
Front: 4K UHD (3840×2160) Cabin: Full HD 1080p (1920×1080) Rear: 2.5K QHD (2560×1440) |
| Frame Rate |
30fps |
| Image Sensor |
Dual Sony STARVIS sensors |
| Image Enhancements |
SNV, WDR, 6 IR sensors (cabin camera) |
| Field of View |
Front: 150° FOV Cabin: 150° FOV Rear: 150° FOV |
| Aperture |
Front: F1.8 |
Connectivity/App
| Wi-Fi frequency | 2.4GHz Wi-Fi Turbo |
| App Control | Yes (Azdome Application) |
| LTE + Cloud Support | Not Supported |
| GPS Logging | Supported |
| Voice Control |
Not Supported |
Features/Safety
| Loop Recording | Yes |
| G-Sensor | 3-axis G-Sensor |
| Parking Mode | Optional (Hardwire Kit required) |
| Parking Mode Features |
24/7 Parking Monitoring, Time-lapse recording mode, Collision detection mode, Motion detection mode |
| ADAS | Not Supported |
| DMS | Not supported |
Storage
| Storage Type |
MicroSD Card |
| Storage Included | 64GB MicroSD Card |
| SD Card Compatibility | up to 256GB external MicroSD card |
